Industrial Media Converter

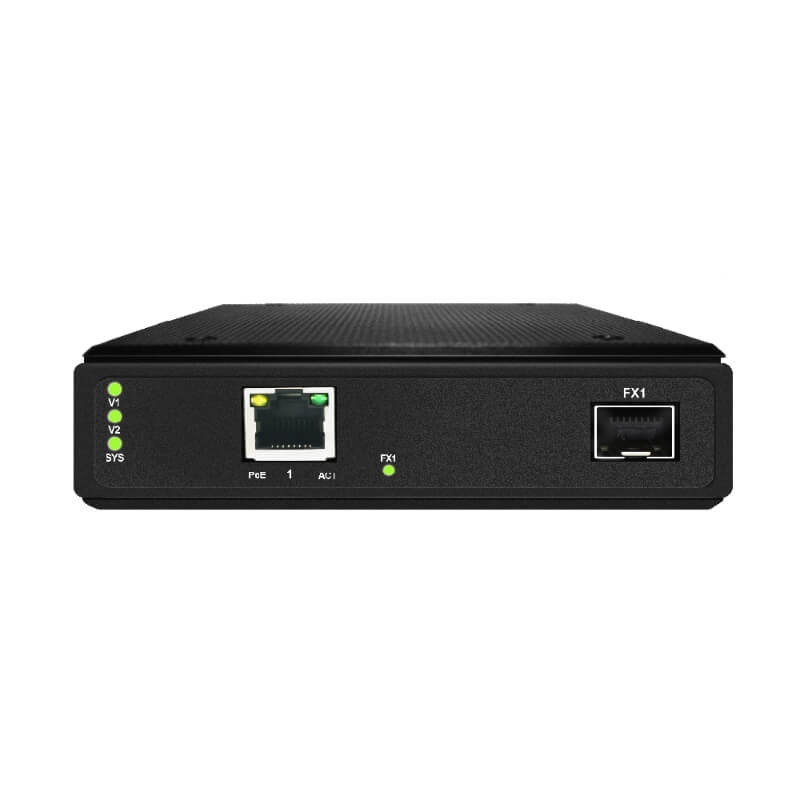

NL8002P1C1F
Industrial Unmanaged Gigabit PoE Media Converter
Industrial Unmanaged Gigabit PoE Media Converter
| Copper Ports | 1- 10/ 100/ 1000BASE-T RJ45 auto-sensing ports |
| Fiber Ports | 1- 1000BASE-X uplink fiber ports , SC/ST/ FC/SFP optional |
| PoE Ports | 1-802.3af/at PoE Injector Ports |
| Switch Architecture | Store-and-Forward |
| DIP Switch | PoE PD-Alive |
| Switch Fabric | 4Gbps/non-blocking |
| Throughput | 2.98Mpps @64 bytes |
| Share Data Buffer | 2 Mb |
| Jumbo Frame | 9216 Bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex |
| Power Supply | 48 ~ 57 VDC, 50/60Hz, Dual DC |
| PoE Standards | IEEE 802.3af Power over Ethernet/ PSE IEEE 802.3at Power over Ethernet Plus/ PSE |
| PoE Power Supply Type | Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at) |
| LED Indicators | Solid on–power work normal,off–power disconnected System:Green Blink–work normally, solid on–soft work abnormal PoE:Yellow Solid on-PoE work normally, Off-PoE doesn’t work LFP:Yellow Blink- Fiber or network cable link is fail, when the LFP function is on. 10/ 100/ 1000T RJ45 Interfaces (Port 1): 1000LNK/ACT(Green), Blink–port connected with data transmission; Solid on–port connected without data transmission 1000MbpsSFPInterfaces(Port2):Green Blink- port connected with data transmission; Solid on- port connected without data transmission |
| EMC | Surge Immunity:4KV Per: IEC61000-4-5 ESD Protection: ESD Level 4 Per: IEC61000-4-2; EFT Level 4 Per: IEC61000-4-4 |
| Dimension | 118.5 *100*30mm |
| Weight | 0.3kg |
| Working Temperature | -40°C to 75°C |
| Storage Temperature | ‘-40℃ to 80 ℃ |
| MTBF | 50,000hrs |
