Industrial Media Converter

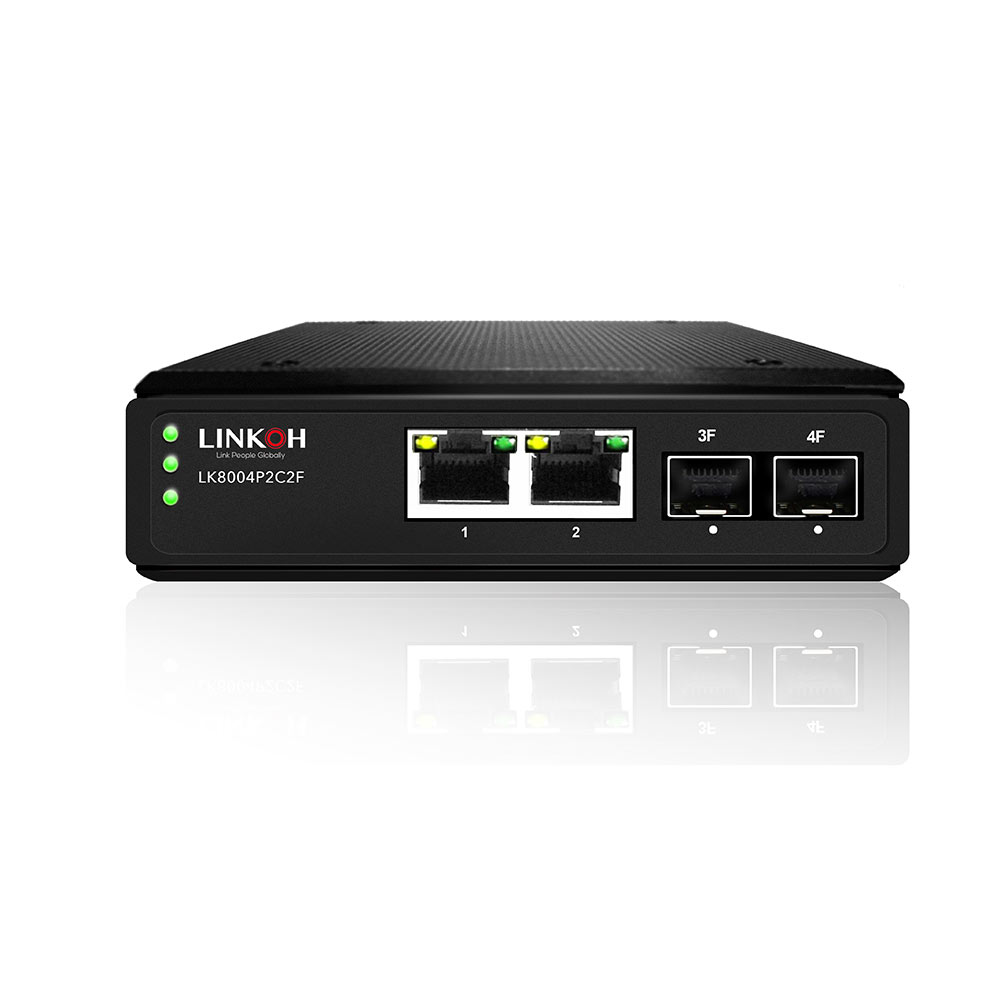

NL8004P2C2F
Industrial Unmanaged Gigabit PoE Switch
Industrial Unmanaged Gigabit PoE Switch
| Interface | 2 |
| Ethernet | 2*10/ 100/ 1000Base-T PoE 2* 100/ 1000Base-X SFP |
| Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE |
| Dip Switch | 1. Fiber redundant 2. Fiber port 100/ 1000M selection 3. 250m long distance mode(1-2 ports) 4. PoE watchdog |
| LED Indicators | 3-4 ( Fiber ports) Green |
| Input voltage | 44-57VDC, redundant power input |
| Input current | 1.5A Max |
| Total power consumption | Full loading without PoE ≤ 3W PoE power budget ≤60W |
| Connector | Removable 4-pin terminal block |
